House Construction 1.5mm Cz Purlin Roll Forming Machine

Brand Name : LIMING

Model Number : LM-purlin12-5

Certification : CE、BV、ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 45set/Year

Delivery Time : 30 work days

Packaging Details : Nude、Anti-dust film, Anti-rust cloth

Production product specifications:Production product specifications : C width (80-300mm),

Weight : 14000kg

Motor power : 22kw

Thickness : 1.5-3.0mm

Forming passes : 18 passes

Feed material : Q195/Q235 hot rolled strip steel

Material : 45#

Dimension(L*W*H) : 5000*1000*1000mm

Contact Now

The purlin roll forming machine for house construction can produce CZ purlin forming machines with different types of C and Z profiles

Liming Pressing Machinery Co., Ltd. is a company that designs, develops, sells, and cold-formed equipment. Liming has 25 years of experience in the design and production of CZ purlin forming machines, which can fully satisfy customers’ demands for CZ purlin forming machines. The need for precision and efficient production.

Technical parameters of The purlin roll forming machine for house construction can produce CZ purlin forming machines with different types of C and Z profiles

Raw Material Type Galvanized Sheet, Black Sheet
Thickness 1.5-3.0mm
C Purlin Size Web x Flange x Lip 80-300/ 30-80/ 10-20
Z Purlin Size Web x Flange x Lip 120-300/ 30-80/ 10-20
Speed Max. 30m/min (by servo motor driven)
Performance C & Z Interchange PLC Control, Fully Automatic
Size Change PLC Control, Fully Automatic
Uncoiler Type Mechanical or Hydraulic
Capacity 6 T
Main Roller Station 18
Main Machine Main Drive Hydraulic Motor or Servo Motor
Transmission Type Chain
Punching Location Web + Flange
Punching & Cutting Punching Unit 5Sets
Cutter Type Universal Cutter

Process flow of CZ purlin forming machine

Place the raw materials-raw material uncoiling-feed flattening-cold-rolled forming-mounting holes on both sides-fixed length cutting-finished product receiving

Advantages of CZ purlin forming machine

1. The CZ purlin forming machine can produce C-shaped steel and Z-shaped models, which can help you save space and save manpower and equipment purchase costs.

2. CZ purlin forming machine supports and adjusts the type of profile produced, which can help you realize the production of profiles of different sizes

3. The punching position of the punching device of the CZ purlin forming machine can be adjusted freely according to your needs

4. The cutting device of CZ purlin forming machine, we use an adjustable stepless cutting device, which can be cut at will according to the type and size of the material you produce.

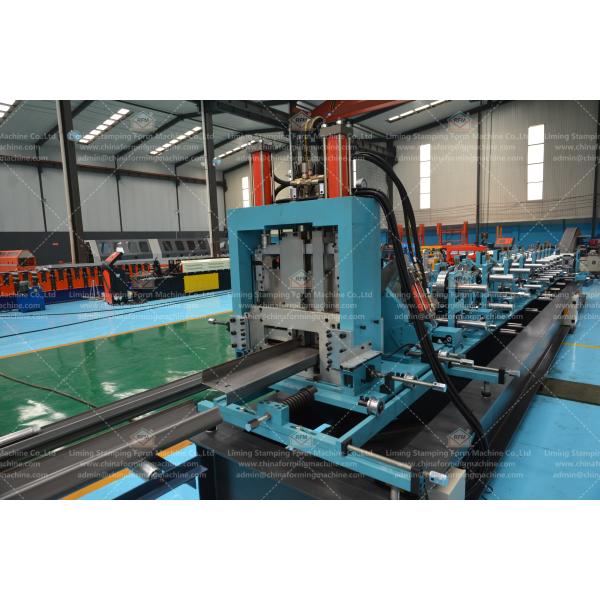

House Construction 1.5mm Cz Purlin Roll Forming MachineHouse Construction 1.5mm Cz Purlin Roll Forming Machine

House Construction 1.5mm Cz Purlin Roll Forming MachineHouse Construction 1.5mm Cz Purlin Roll Forming Machine

House Construction 1.5mm Cz Purlin Roll Forming Machine
