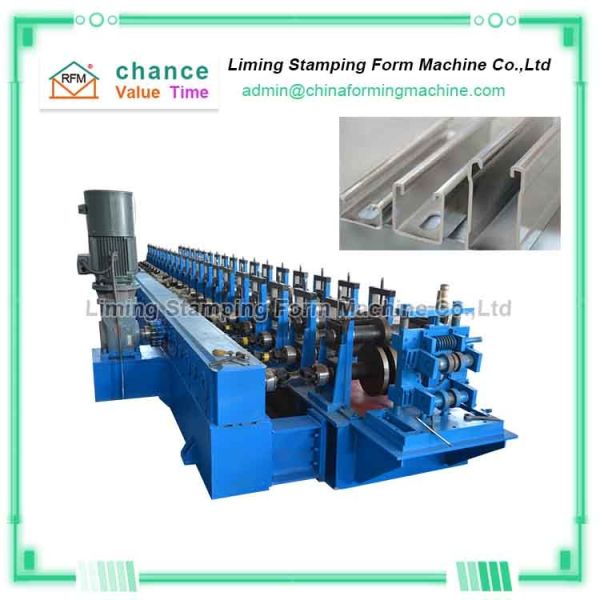

Easy to install 40m / min photovoltaic bracket forming machine
As the solar panel pole bracket, the solar photovoltaic bracket is the main part of the ground solar pole installation system. Solar power generation system is also called solar panel system with solar roof mounting bracket. Roll-formed solar photovoltaic bracket punching provides a suitable solution for solar mounting system.
| No. | Item | Description |
| 1 | Products’ sizes | According to customer’s profile drawing |
| 2 | Processing material | GI |
| 3 | Processing thickness | 1-2.5MM |
| 4 | Main motor power of roll forming machine | 55kw |
| 5 | Power of hydraulic station for cutting device | 7.5kw |
| 6 | Quantity of roller stations | 22 |
| 7 | Production speed | 10-30m/min |
| 8 | Diameter of shafts | Φ75mm |
| 9 | Material of rollers | Cr12 steel with vacuum heat treatment HRC57°-60° |
| 10 | Material of shafts | 45# steel quenched and tempered |
| 11 | Driven method | Gearbox |
| 12 | Brand of PLC | Delta |
| 13 | Cut mode | Hydraulic profile cutting for Pole and Rafter profile & fly-saw cutting for purlin profile |
| 14 | Power supply | 380V 50HZ 3Phases or at buyer’s requirement |
Easy to install 40m / min photovoltaic bracket forming machine
As the solar panel pole bracket, the solar photovoltaic bracket is the main part of the ground solar pole installation system. Solar power generation system is also called solar panel system with solar roof mounting bracket. Roll-formed solar photovoltaic bracket punching provides a suitable solution for solar mounting system.
With our years of design and manufacturing advantages in the solar photovoltaic bracket industry, we have rich experience and can provide customized solar photovoltaic bracket forming machines with the most competitive prices and suitable solutions. This solar photovoltaic bracket makes the installation of solar panels safe and reliable, easy to install, and convenient to save money.
The advantages of the solar photovoltaic stent forming machine, compared with the conventional photovoltaic stent equipment, are wider in cross-section, not limited by length, and high in efficiency.
The entire solar photovoltaic support module depends on the individual requirements of the customer, or our experienced engineers will customize a photovoltaic support molding machine for you according to your production output and price budget to meet your production needs.
The optional auxiliary equipment of the photovoltaic support forming machine includes uncoiler, straightening device, front and rear punching, fixed cutting machine, output table, etc., which can help you save labor costs and production procedures to the greatest extent.
